45 Magneti Marelli IAW 6LP1

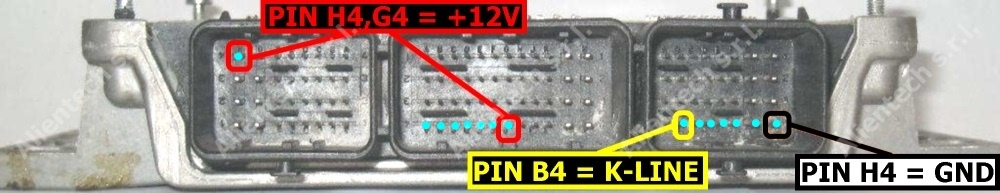

| Pin | Color | Description |
| Pin H4,G4 | Red | +12V |
| Pin H4 | Black | Ground |
| Pin B4 | Yellow | K-Line |

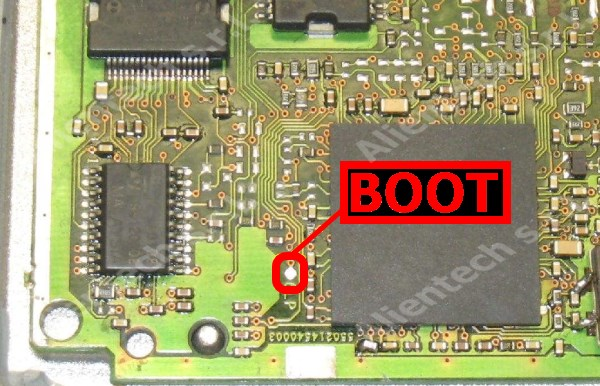

| Soldered wire | Gray with alligator clip | BOOT |
| Pin | Color | Description |
| Pin H4,G4 | Red | +12V |
| Pin H4 | Black | Ground |
| Pin B4 | Yellow | K-Line |
| Soldered wire | Gray with alligator clip | BOOT |
